SUPMEA

Process Instrumentation & Sensors

Supmea delivers precision process instrumentation and sensor solutions for industrial applications. From flow meters to pressure transmitters, Supmea provides accurate, reliable measurement devices for critical processes.

High-precision measurementHarsh environment ratedMultiple output protocolsEasy calibration
Request Product Catalog

Product Categories

Explore our complete range of Supmea products and solutions

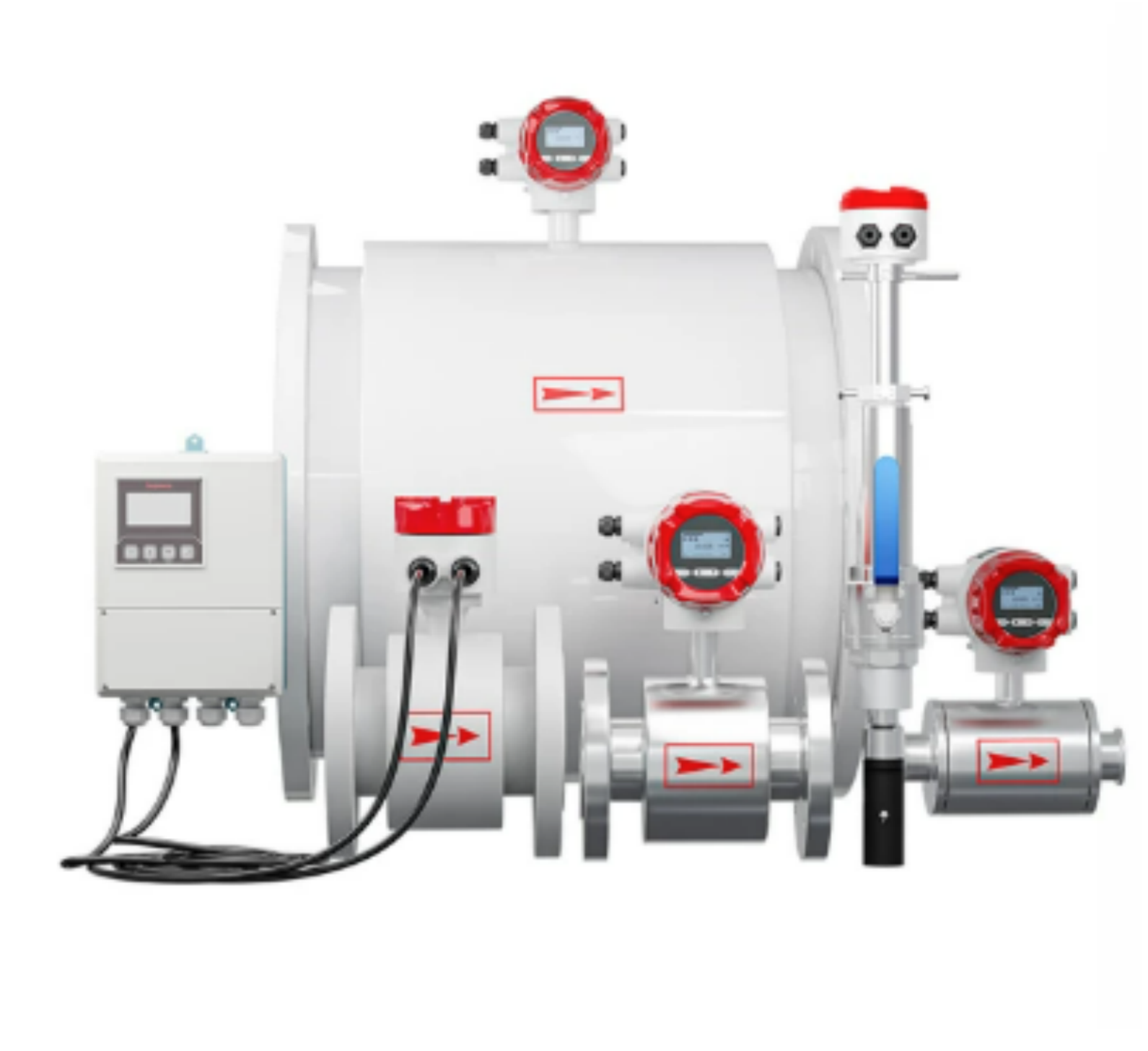

Electromagnetic Flow Meters

Electromagnetic Flow Meters

Supmea electromagnetic flow meters provide accurate, reliable measurement of conductive liquids with no moving parts and minimal pressure drop.

Key Features:

Pipe sizes: DN10 to DN2000
Accuracy: ±0.5% of reading
Liner materials: PTFE, rubber, PFA
Electrode materials: 316L SS, Hastelloy, titanium
Output: 4-20mA, pulse, HART, Modbus
Bi-directional flow measurement
IP67/IP68 protection rating
Empty pipe detection

Specifications: Fluid temp: -20°C to +180°C | Pressure: up to 4.0 MPa | Power: 220VAC or 24VDC

Request Quote
Ultrasonic Flow Meters

Ultrasonic Flow Meters

Non-invasive ultrasonic flow meters for clean liquids and gases, featuring clamp-on or insertion sensors with no pressure drop or moving parts.

Key Features:

Technologies: Transit-time, Doppler
Pipe sizes: DN15 to DN6000
Accuracy: ±1% to ±2% of reading
Clamp-on or insertion mounting
No pressure loss or flow obstruction
Suitable for clean or turbid liquids
Portable and fixed installation options
Output: 4-20mA, pulse, RS485, HART

Specifications: Fluid temp: -40°C to +200°C | Power: 85-265VAC or 12-36VDC | Display: Backlit LCD

Request Quote

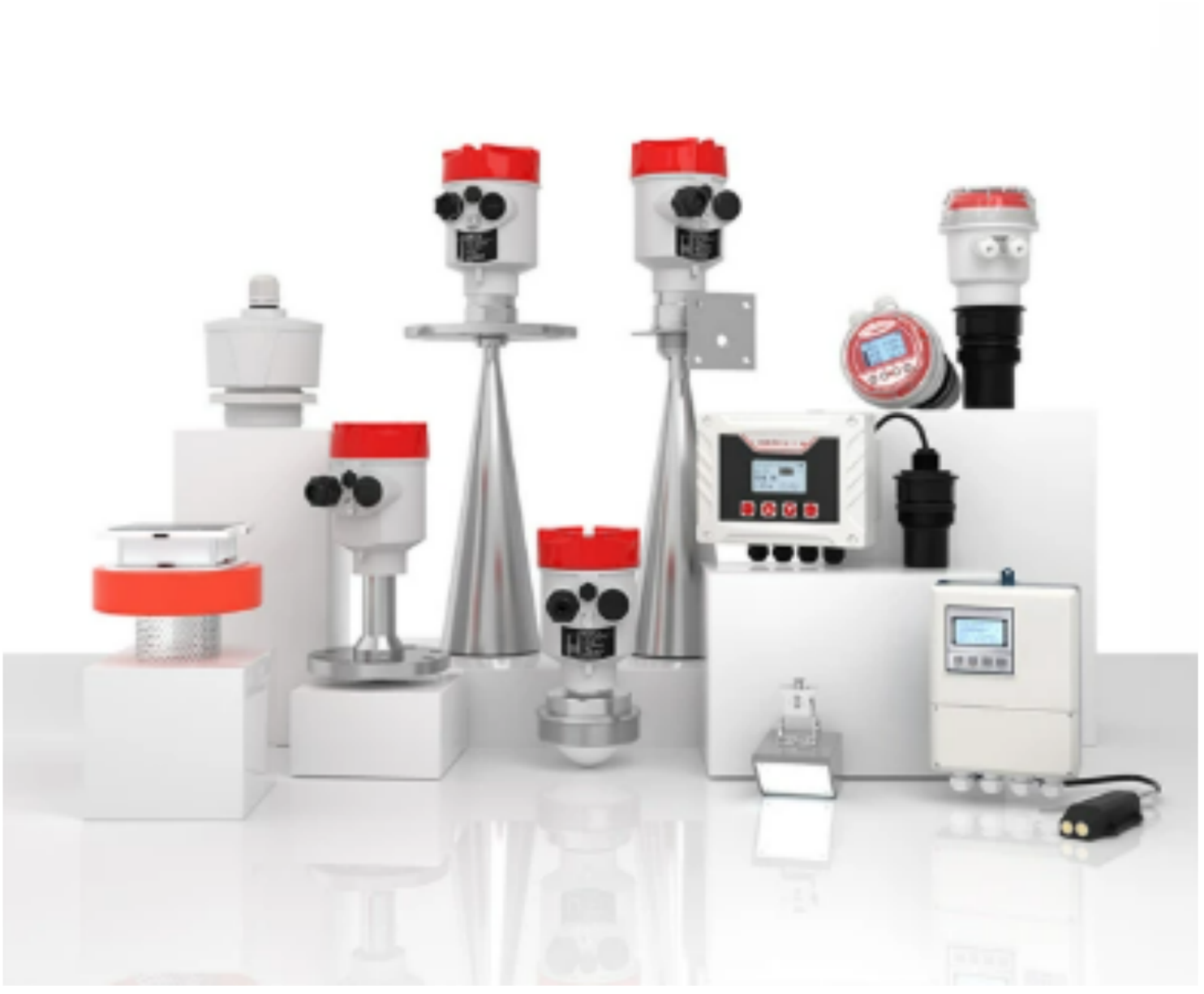

Level Transmitters & Switches

Level Transmitters & Switches

Ultrasonic, radar, and hydrostatic level measurement solutions for liquids and solids in tanks, silos, and open channels.

Key Features:

Technologies: Ultrasonic, radar, hydrostatic
Measurement range: 0.3m to 70m
Accuracy: ±0.25% to ±1% FS
Output: 4-20mA, HART, Modbus, Profibus
Display: Graphical LCD with setup menu
Non-contact measurement (ultrasonic/radar)
Temperature compensation
Foam & turbulence rejection

Specifications: Process temp: -40°C to +250°C | Pressure: up to 4.0 MPa | Power: 12-36V DC

Request Quote

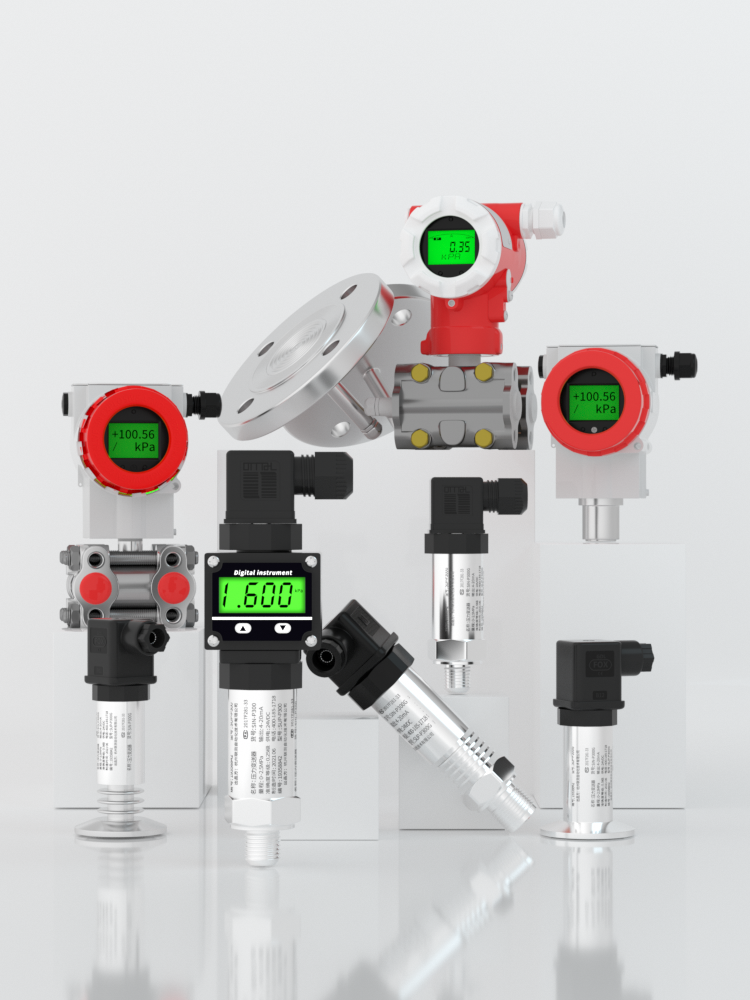

Pressure Transmitters

Pressure Transmitters

High-precision pressure transmitters for gauge, absolute, and differential pressure measurement in industrial processes.

Key Features:

Pressure ranges: 0-10kPa to 0-60MPa
Accuracy: ±0.075% to ±0.25% FS
Output: 4-20mA, 0-5V, 0-10V, HART
Process connections: 1/4" NPT, 1/2" NPT, M20
Wetted materials: 316L SS, Hastelloy
Display: Optional LCD with backlight
Overload protection: 2x or 3x rated pressure
Explosion-proof options available

Specifications: Operating temp: -40°C to +125°C | Stability: ±0.1% FS/year | Protection: IP65

Request Quote

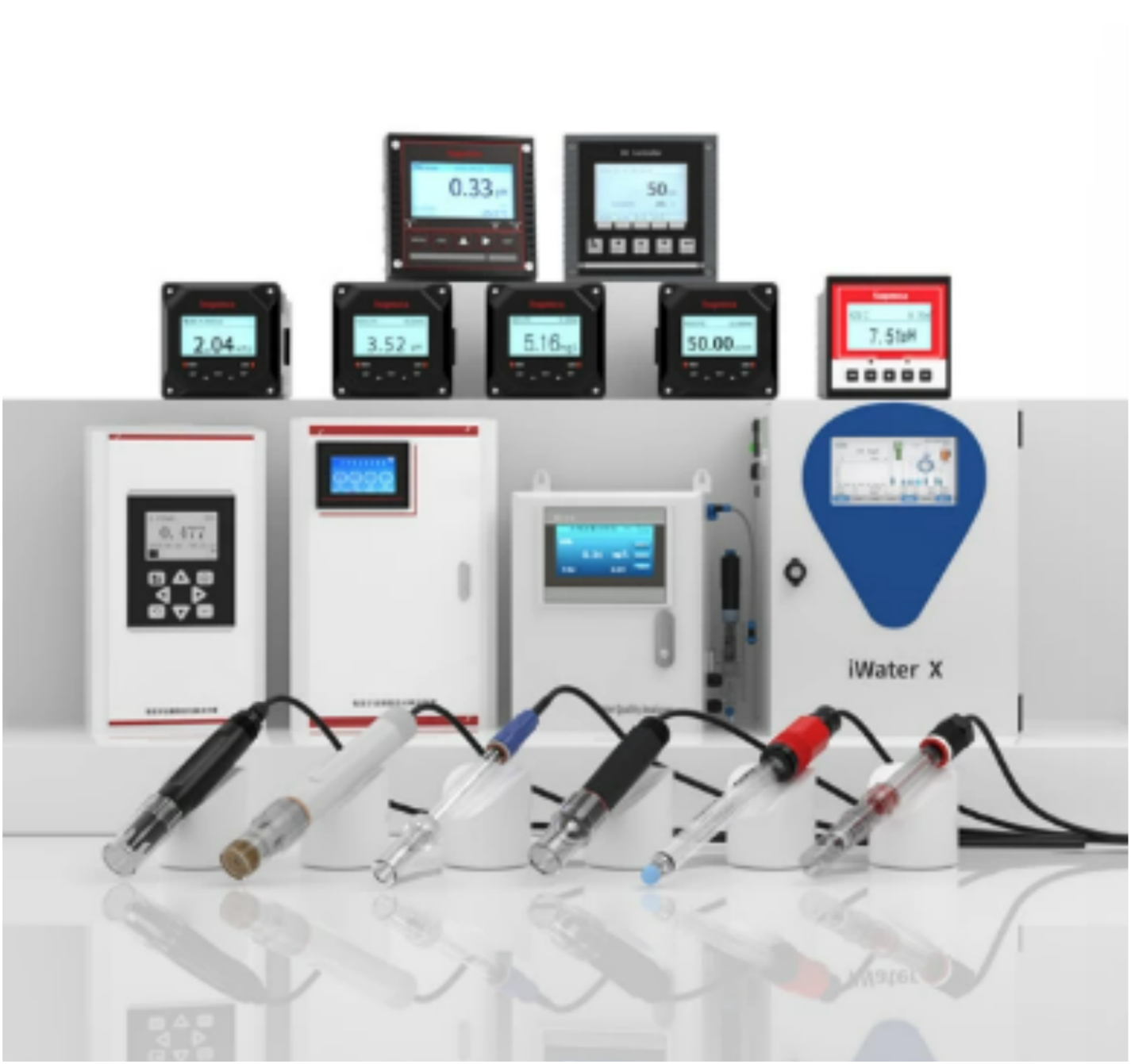

Supmea Liquid Analysers

Supmea Liquid Analysers

Advanced liquid analysis instruments for pH, conductivity, dissolved oxygen, turbidity, and other critical water quality parameters in industrial processes.

Key Features:

Measurement types: pH, ORP, conductivity, DO, turbidity, chlorine
Digital sensors with MODBUS/HART communication
Automatic temperature compensation
Self-diagnostic capabilities
Multi-parameter analysis options
Weatherproof IP65/IP67 enclosures
Automatic calibration & cleaning systems
Output: 4-20mA, RS485, HART protocol

Specifications: pH range: 0-14 | Conductivity: 0.01μS/cm to 2000mS/cm | Power: 85-265VAC or 12-36VDC

Request Quote
