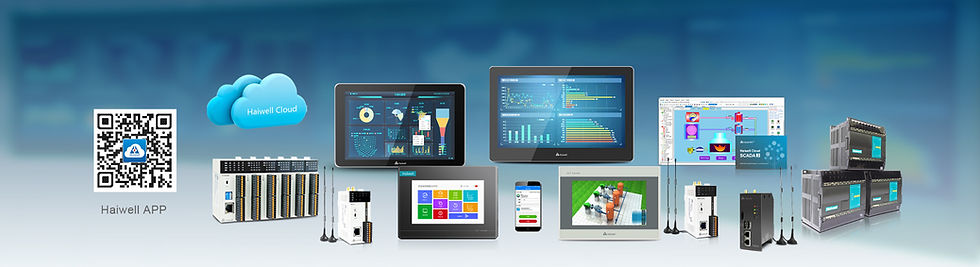

  • Haiwell Cloud is a cross-platform IOT cloud platform. It supports PC, iPad, Android, IOS and other terminals. You can visit on-site equipment from a thousand miles away, and realize the remote monitoring and maintaining for HMI and PLC. It supports remote programming, firmware upgrades, monitoring and diagnosis etc. Haiwell Cloud provides security mechanisms for communication. It is secured by the encryption mechanism of 128-bit SSL,which ensures the stable and safe data transfer. It also uses A-key and B-Key protection mechanism to enable secure remote access to the devices.

  • Simply, Haiwell Cloud is a complete set of cloud service solutions for the automation industry. It covers a series of products such as Haiwell Cloud website, Cloud SCADA, Cloud HMI and Cloud APP. The aim of Haiwell Could is to provide more secure and convenient integrated solutions for industrial users. All Haiwell PLC and Ethernet cloud series HMI can be easily controlled at anytime and anywhere through Haiwell cloud.

Haiwell IOT Application.jpg

  • Haiwell PLC includes black Classic-type PLC and white Card-type PLC (A series PLC). Haiwell PLC is a versatile high-performance programmable logic controller, which is widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment. In addition to its own various peripheral interfaces (digital input, digital output, analog input, analog output, high-speed counter, high-speed pulse output channels, power supply, communication ports, etc.), it is also expandable with all types of extension modules for felixable configuration.

Haiwell PLC.jpg

  • Haiwell PLC Features

  • Ethernet +

  • Host PLC and remote modules support Ethernet communication, host PLC support Ethernet port and 5 RS232/RS485 serial communication ports working simultaneously. Support N:N network type, support remote programming, debugging, monitoring and data exchange. Easy to work with other PLC modules, HMI and PC via Ethernet port.

  • Life time free  firmware upgrading

  • Taking the lead in the function of realizing firmware upgrade in a small programmable controller. You can upgrade the system firmware through the firmware upgrade function for free, therefore the PLCs that you bought previously can also to have the latest features from Haiwell company.

  • Rich network communication function

  • CPU host PLC supports built-in Ethernet port and 2 serial RS232/RS485 communication ports, it is expandable to 1 Ethernet port and 5 serial RS232/RS485 ports, each port can be programmed and connects to network, and all of them can be used as masters or slaves. It support multilevel networking and a variety of human-machine interface and configuration software. It can also connect to network with any third-party devices which have communication capabilities (such as inverters, instruments, barcode readers, etc.).

  • Supports multiple communication protocols

  • Supports built-in Modbus TCP, Modbus RTU/ASCII protocol, free communication protocol and Haiwell Company’s Haiwellbus TCP and Haiwellbus high-speed communication protocols. No matter which kind of communication protocols, it only needs a simple communication instruction when dealing with complex communication functions. You will no longer troubled by the problems as communications port’s conflicts, sending & receiving control, communications interrupt handling issues and you can use a variety of protocols to exchange data easily by mixing them up in the program.

  • High-speed pulse counting function

  • Supports 8-channel duplex high-speed (200KHz) pulse counting, and 7 kinds of counting modes (pulse / direction 1 octave, pulse / direction 2 octave, forward / reverse pulse 1 octave, forward / reverse pulse 2 octave, A / B phase pulse 1 octave, A / B phase pulse 2 octave, A / B phase pulse 4 octave), and three kinds of comparisons (single-stage comparison, the absolute mode comparison, the relative mode comparison), supports 48 segments comparison fixed value, with self-learning function.

  • High-speed pulse frequency measurement

  • Supports 16-channel (200KHz) high-speed pulse frequency measurement, support the ways of time or pulses to measure the frequency

  • High-speed pulse output

  • Supports 8-channel duplex high-speed (200KHz) pulse output, support for acceleration and deceleration pulse output, multi-segment envelope pulse output function, a unique sync pulse output function makes it easy to achieve precise synchronization control. Stand-alone support 16-channel pulse width modulation (PWM), can drive 16 servo or stepper motors.

  • Motion control function

  • Each model support for 8-channel (200KHz) motion control, supports arbitrary 2-channel linear interpolation, circular interpolation, support follower pulse output, absolute address, relative address, backlash compensation, original point return, definition of electrical origin.

  • Edge capture and interrupts

  • CPU supports 8-channel up and down along the catch and interrupt functions, all digital inputs support signal filtering settings, all digital outputs remains set to support power output. Provide 52 real-time interrupts.

  • Powerful analog processing function

  • AI register accesses the analog input directly, analog input support engineering conversion, sampling frequency settings, and zero correction. Available AQ registers control the analog output directly, analog output support engineering conversion and can be configured to maintain output.

  • Strong password protection function

  • Three levels of password protection function (program files password, each block password, PLC hardware password) and prohibits the application to upload.

  • Self-diagnostic function, power failure protection function, calendar (RTC), floating point operations, etc.
